Description

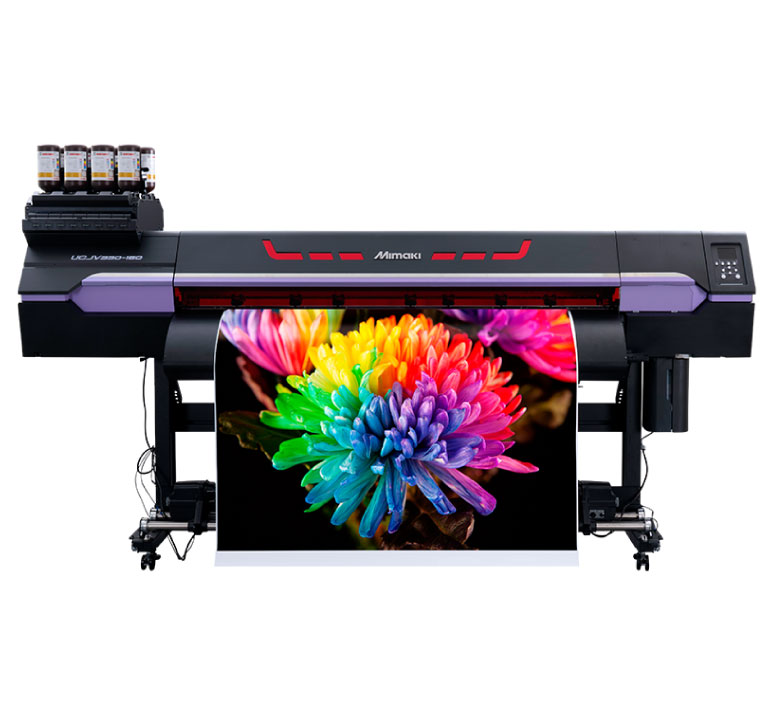

Mimaki UCJV330 Series UV LED Print & Cut Printer
The Mimaki UCJV330 Series is a flagship professional UV LED print-and-cut printer combining high-quality wide-format printing with integrated contour cutting. Designed for sign shops, commercial printers and graphics businesses, it provides a complete production workflow from printing through to finished cut graphics.
Available in 1,360 mm and 1,610 mm print/cut widths, the UCJV330 Series combines Mimaki’s 330 Series technology with advanced UV printing capabilities.
Mimaki UCJV330 Series Video
Watch the official Mimaki video specifically for the UCJV330 Series:
https://www.youtube.com/watch?v=LCoMnLZ7fG4
UV Printing with No Drying Time
UV LED ink cures during printing, eliminating the drying time associated with many conventional printing processes. Finished graphics can therefore move quickly to cutting, finishing or installation.
This makes the Mimaki UCJV330 Series particularly suited to businesses where production speed and turnaround times are important.
Print and Cut in One Machine
Integrated contour cutting allows printed graphics to be automatically cut without transferring the media to a separate cutting plotter.
Applications include:
- Signs and displays
- Stickers and decals
- Labels
- Window graphics
- Banners
- Posters
- Vehicle graphics
- Wallpaper
- Point-of-sale displays
- Floor graphics
- Backlit and illuminated signage
White and Clear UV Ink
Depending on the selected ink configuration, the UCJV330 Series supports CMYK, Light Cyan, Light Magenta, White and Clear UV-curable inks.
White ink enables printing onto transparent and coloured media, while clear ink expands the range of premium finishes and creative effects available.
Advanced Layer Printing and 2.5D Effects
One of the standout capabilities of the Mimaki UCJV330 Series is its advanced multilayer printing.
The printer supports 2 to 5-layer printing, allowing sophisticated graphics to be created for applications such as window displays and backlit signage.
It is also Mimaki’s first roll-to-roll printer to support 2.5D printing, allowing clear ink to be layered to create raised textures and tactile visual effects.
Two Available Models
Mimaki UCJV330-130
- Maximum print/cut width: 1,360 mm
- Maximum media width: 1,370 mm
Mimaki UCJV330-160
- Maximum print/cut width: 1,610 mm
- Maximum media width: 1,620 mm
Both models accommodate media up to 1 mm thick and rolls up to 250 mm in diameter.
Cutting System
The integrated cutting system provides:
- Maximum cutting speed: 300 mm/s
- Cutting pressure: 10 to 450 gf
- Cutting acceleration: Up to 0.5G
- Repeatability: ±0.2 mm
- Automatic media cutting
Key Features
- Professional UV LED print-and-cut system
- Mimaki flagship 330 Series technology
- Integrated contour cutting
- Maximum resolution up to 1,800 dpi
- White and clear ink capability
- 2 to 5-layer printing
- 2.5D textured printing capability
- UV LED instant curing
- No conventional drying time
- 1,360 mm and 1,610 mm print/cut models
- Optional media changer supporting up to three rolls
- Ethernet and USB connectivity
- Suitable for signage, stickers, displays, vehicle graphics and specialised applications
The Mimaki UCJV330 Series UV LED Print & Cut Printer is designed for businesses requiring premium print quality, productive integrated cutting and the ability to produce higher-value UV applications from a single wide-format system.
